Full Speed USB 2.0. 48 Inputs, 96 outputs. Upgradeable Firmware.
Trackball and spinner simply plug in. RGB LEDs simply plug in.

****The only wires you receive with this version is the power cable and USB cable.

This board has a total of 176 connections. If you were to hand-wire every LED and switch this would be a total of up to 576 wire ends to strip and connect! Which is why we have done it for you.!

48 inputs each with it’s own dedicated microprocessor pin. No interaction or delays, vital for multi-button games such as fighting games.
Emulates a USB keyboard and yet breaks through the USB simultaneously-pressed-switch limit of 6 switches (plus ctrl,alt,shift) which afflicts all USB keyboard devices. This is because it has inbuilt full native USB support, and does not rely on an add-on adapter.
Also emulates Mouse, Game Controller and Power/Volume Control.
All input pins can be assigned to any keyboard key, gamepad button (including hat switch), mouse button or power/volume control. Also sleep/wake.
Inputs can be assigned as trackball and spinner and our U-Trak and SpinTrak devices plug directly into the board.
Shift function which allows ANY input to be assigned to a shifted secondary keycode and the shift button can have it’s own function too so no need for a dedicated extra control panel button.
Self-test LED which gives an instant visible check of your installation.
96 channel LED controller with constant-current drivers. Also 8 high-current 1 amp drivers.
Brand new INTERACTIVE configuration utility which applies and reads back any changes “on the fly”.
MAME Defaults pre-loaded.
I-PAC Ultimate I/O retains it’s programming after power off. Beware! Not all keyboard encoders do this!
Special version available with ACCELEROMETER chip on board which is configured for “nudge detect” mode.

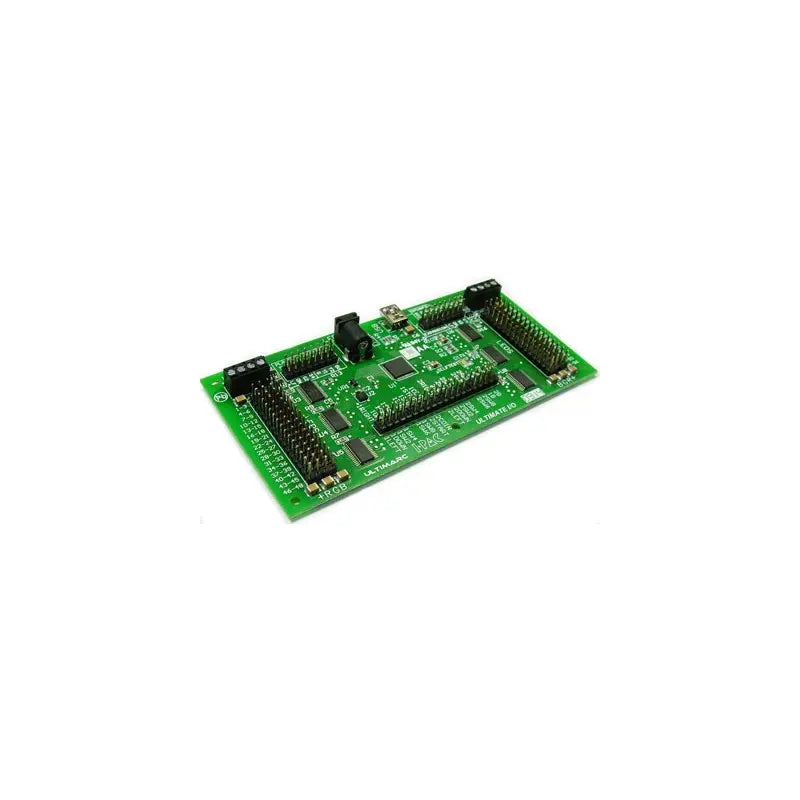

The I-PAC series (Interface for Pc to Arcade Controls) are boards which allow connection of arcade controls such as buttons and joysticks to a USB port on a PC motherboard. They are designed around the MAME emulator which supports over 1000 arcade games and can be used with other emulators.
It is designed to be used inside an Arcade Games cabinet with the PC motherboard also mounted inside, but could just as easily be used with simply a control panel without a cabinet.

Fully programmable key code set. Stored even after power off unlike some other interfaces which lose all data when powered off.
Controls can be assigned to any keycode, gamepad button, plus mouse buttons, power, volume up/down, sleep or wake.
Wiring harness supplied for 30 input connections. Additional harness options for the other 16 inputs. Connections marked on the board.
Trackball and spinner interface. When enabled these use a total of 6 of the available 48 inputs.
Example configurations include: 2 player with trackball/spinner. 4 player without trackball/spinner.
Self-Test LED gives an instant check of all your wiring. Can indicate which, if any, input has a problem.
All button inputs referenced to ground – no need to re-wire separate grounds to each button.
Supplied USB cable plugs into PC USB port.
Using host software, an unlimited number of keycode configurations can be stored and downloaded on-the-fly. Retained on power off.
No separate power needed for controls.
Does not use a matrix – no ghost keys.
Does not use a scanning method which causes a variable delay. Each input has it’s own dedicated connection into the on-board CPU .
Fast running interrupt-driven software gives much better response than a standard keyboard controller. Key debounce uses a state method for each key. No delays between keys depressed at the same time. (essential for fighting games).
2 operation modes. Either uses standard MAME keys or you can program your own character set.
Shift functions. Holding “Start1” and pressing other buttons sends a range of codes for MAME functions such as “escape”, “Coin 1”, “tab”, “enter”. This means no extra buttons are needed on the cabinet. In programmable mode any input can be the shift key and all keys can be programmed with a shifted code.
Special note for Windows MAME users! Shift key functions mean you can select and start games from the Windows interface without using the keyboard or mouse.
No special drivers needed. USB drivers are generic Windows.
Fully compatible with all Apple Mac (excl config utility).
Supports the Apple Mac “command” key and the Windows “GUI” keys.
Special board version available with Accelerometer on board. When enabled this sends “arrow” keys, responding to physical movement.

OUTPUTS

96 LED channels with 256 brightness levels for full RGB color mixing
Can be used with single-color or RGB LEDs (RGB use 3 channels)
Constant current negates the need for resistors for each LED
Can be used with LEDs with inbuilt resistors if required
128-command flash storage for “attract-mode” or test sequences which run immediately on power-up with no PC present
Supplied configuration utility allows customization and storage of attract-mode LED sequence.
Supports single-command fades with preset speed on-board. Multiple fades can overlap
Comes with power cable for plugging into a PC disk drive power connector.
Extensive software support including test application, Software Development kit for adding support to your own programs, and LedBlinky third-party software
Compact modular connectivity. Our Ultralux RGB and ClassicRGB pushbuttons simply plug in. Other harnesses and connectors available.
6 X 1 amp MOSFET drivers which are suitable for LED strips and other high-power LED applications.

Configuration Software

LED test and scripting utility

WinIPAC for reconfiguring controls

Third-Party Software and SDK Support

As most third-party software and our SDK is cross-product, we have placed all details on this page.

Installation Information

Click here for switch wiring information

LED support works in an identical way to our PacLED64 except there are 96 LEDs instead of 64.
LEDs can be controlled using our SDK or the third-party LEDBlinky utility.
The board is shipped with a pre-configured LED script which fades up all LEDs, then down, then enables each LED in turn, to one color, then cycles. You can change this script if you wish. The LED script runs from power-on even before the PC is running and stops running as soon as any control is activated.
Click here for LED wiring information

Example Configurations	Items to Order
2 Players using Ultralux RGB or ClassicRGB buttons, U-Trak trackball, Spintrak Spinner	Nothing extra required. Order Board with 2-player harness kit. This includes: USB cable LED Power Cable 32-way harness Ground daisy-chain harness
4 Players using Ultralux RGB or ClassicRGB buttons, No trackball or Spinner (these are not supported in a 4-P config)	Order standard board/harness (see above) Order 4-player expansion kit.
Either of the above but using single-color LEDs such as Ultralux.	Order as above plus one “LED Connection Pack” per 9 LEDs, Also one “Daisy-Chain Harness” per panel for LED common connections.
Optional Extras	Extension Harness Pack. This is used for unusually large panels for increasing reach of any longer wires. PCB Mounting Feet

Wiring Harness Detailed Information

Player 3-4 Connection Pack

9-LED Single Color Connection Pack

Harness		Wires	Length
Main Harness	Not Included	32	330mm / 13 inches
Daisy Chain Ground harness	Not Included	32 Links	90mm / 3.5 inches per link
LED Power Cable	Included	n/a	1.5 M
USB Cable	Included	n/a	1.5 M
Extension Harness Pack (Wires replace existing)	Not Included	10	560mm / 22 inches
Player 3,4 Connection Pack	Not Included	20 Plus 20 Ground	560mm / 22 inches
9-LED Connection Pack. Required for each 9 single-color LEDs (Our RGB are pre-wired)	Not Included	9 plus common	560mm / 22 inches
