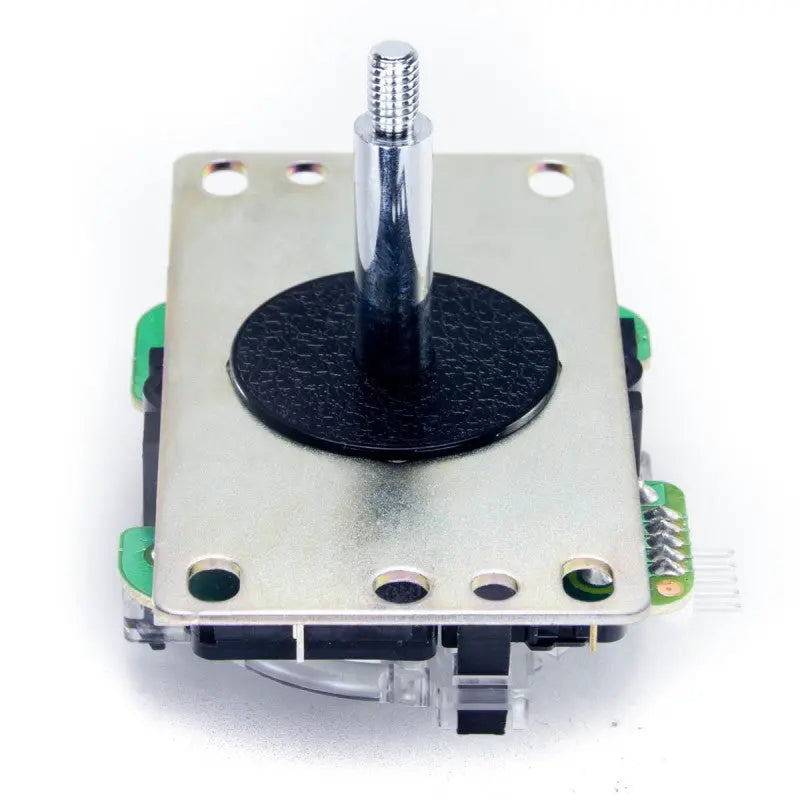

Sanwa JLF-TP-8YT Joystick Enjoy Online

Original price was: $27.95.Current price is: $14.00.

Sanwa OEM Arcade Joystick with short travel and light spring pressure, made in Japan.

Easily Switchable from 8 to 4-way operation by rotating the inner part of the restrictor plate. Or try one of our custom octagon or circle restrictor plates at our custom restrictor section.

You can also pick up one of our custom actuators or custom springs to mod the feel to exactly the way you like it!

Length of shaft (up to bottom side of ball): 32.5mm, with a 5-pin male connector (plugs into JLF-H, NOT included).

Pinout from the left (top view, connector is facing you): 1 – Black – Ground, 2 – Green – Up, 3 – Yellow – Down, 4 – Orange – Left, 5 – Red – Right.

Easily turn the stick into a JLF-TP-8Y by disassembling the mounting plate and attach the JLF-CD (sold separately) to obtain a JLF-TP-8Y-SK.

Suitable for replacement in most Arcade machines.

Enclosed are: Stick unit, mounting plate, and 1 black dust washer

*** Sanwa uses Loctite to the screws on the joystick to secure the mounting plate. The screws are easily get stripped if you are trying to swap the mounting plate. We recommend using the JIS version of Phillips drivers or removing the Loctite by using a heat gun.
